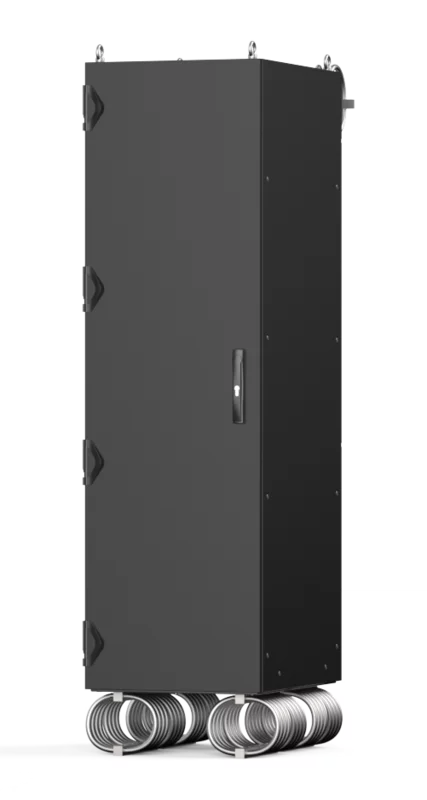

Varistar CP MIL 901E Cabinet, Military Certified for Shock, Vibration, EMC, and Corrosion
- NTS tested to MIL-DTL-901E for DSSM drop table test with weight loading of 460 KGs
- NTS tested to Test Procedure TP-PR168728-00 for EMI Shielding – Complies with MIL-STD-461G
- NTS tested to Mil-STD-810H for Corrosion Resistance
- NTS tested to Mil-STD- 167-1A for vibration
- Doubly protected against corrosion, zinc-plated and powder-coated

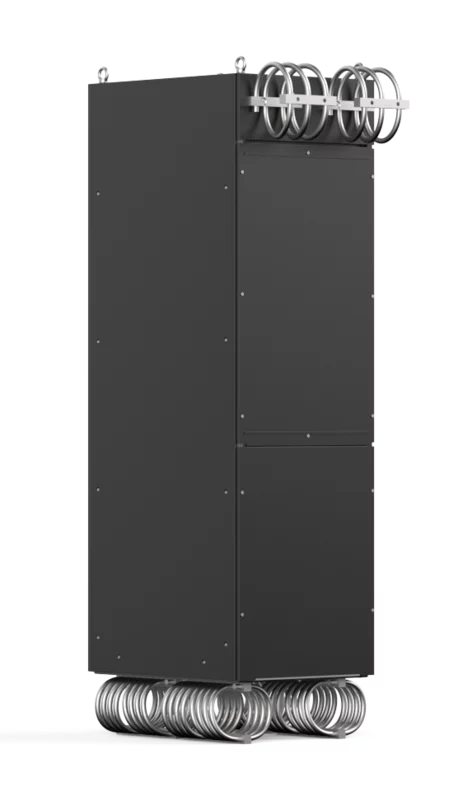

- 4 shock absorbers at bottom and 2 shock absorbers at top
- Rear panel horizontally partitioned in 3 parts – Top cover plate covering the shock absorber fixing area, Bottom cover plate for cable ducting, Middle rear panel closing the gap between the cover plates
- EMC Bottom plate adapted with through holes to connect the shock absorbers directly to the frame
PRODUCT ATTRIBUTES
- Product Type: Cabinet
- Product Family: Varistar CP
- Frame Material: Steel
- Frame Color: Black Grey
- Frame Color Code: RAL 7021
- Cladding Material: Steel
- Cladding Color: Black Grey
- Cladding Color Code: RAL 7021
- Rack Height: 42 U
- Height: 2000 mm
- Width: 600 mm
- Depth: 800 mm
- Static Load: 1600 kg
- Dynamic Load: 460 kg
- Protection Rating: IP55
- Complies With: IEC 60529; MIL-S901E; MIL-STD-461G; MIL-STD-810E; MIL-STD-167
ADDITIONAL PRODUCT DETAILS
Cabinet with military certification for battle readiness and surviving harsh environments. The enclosures are for frigate, airforce and military applications.
Globally military organizations maintains a comprehensive list of standards for equipment deployed in military applications. By selecting equipment qualified to these standards, design engineers can ensure COTS solutions already meet the minimum requirements to protect mission critical systems.
Custom and Modified Solutions.
